LFV3 Series

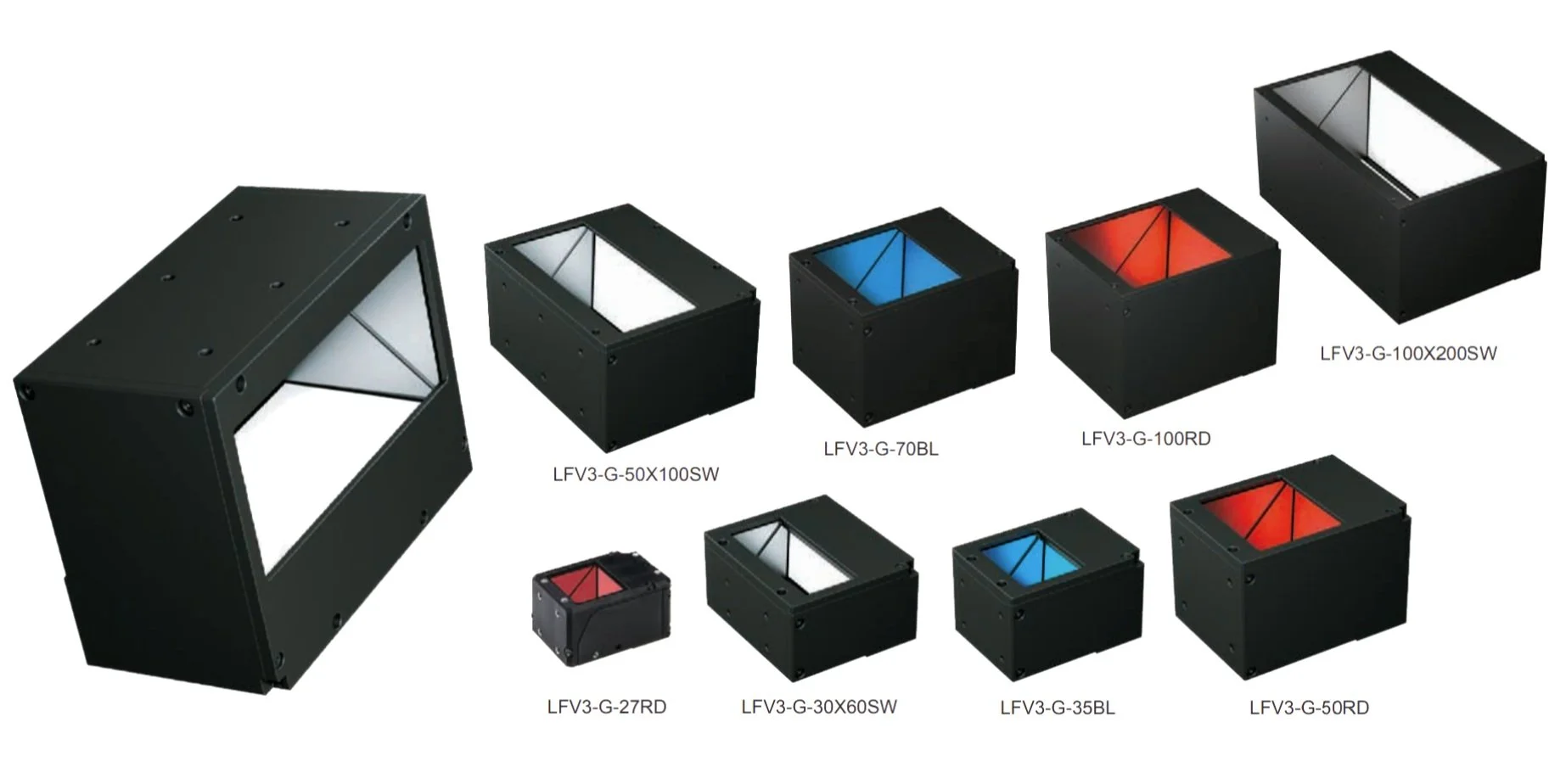

LFV3-G Series

LFV3 Series Coaxial Lights

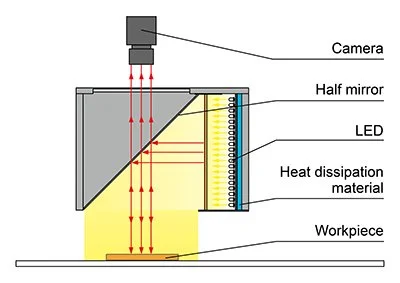

Provides diffused light evenly from the same axis as the camera.

    • LFV3-G: Thinner half mirror to support imaging using high-resolution cameras

    • LFV3-CP: Replaces the half mirror with a beam splitter for increased accuracy

      • Suitable for imaging small work pieces and environments with limited installation space

  • PD4, PD3, CC-ST*, CN-PoE*, CN-EIPT

    *for lights smaller than 10W only

    Controller Series Selection Guide

  • FCB Series

    • DF-LFV3 diffusion plate for high transmission

    • DF-LFV3-UF diffusion plate for low transmission

    • PL-LFV3 polarizing plate

    • LC-LFV3 light control film

    • BK-LFV coaxial light joint bracket

    • LFV3-RA(A): changes illuminating port by 90° for space-saving installation

    • Wavelength

    • Size

LFV3 Series

LFV3-G Series

Download CAD files on our corporate website for LFV3 Series and LFV3-G Series

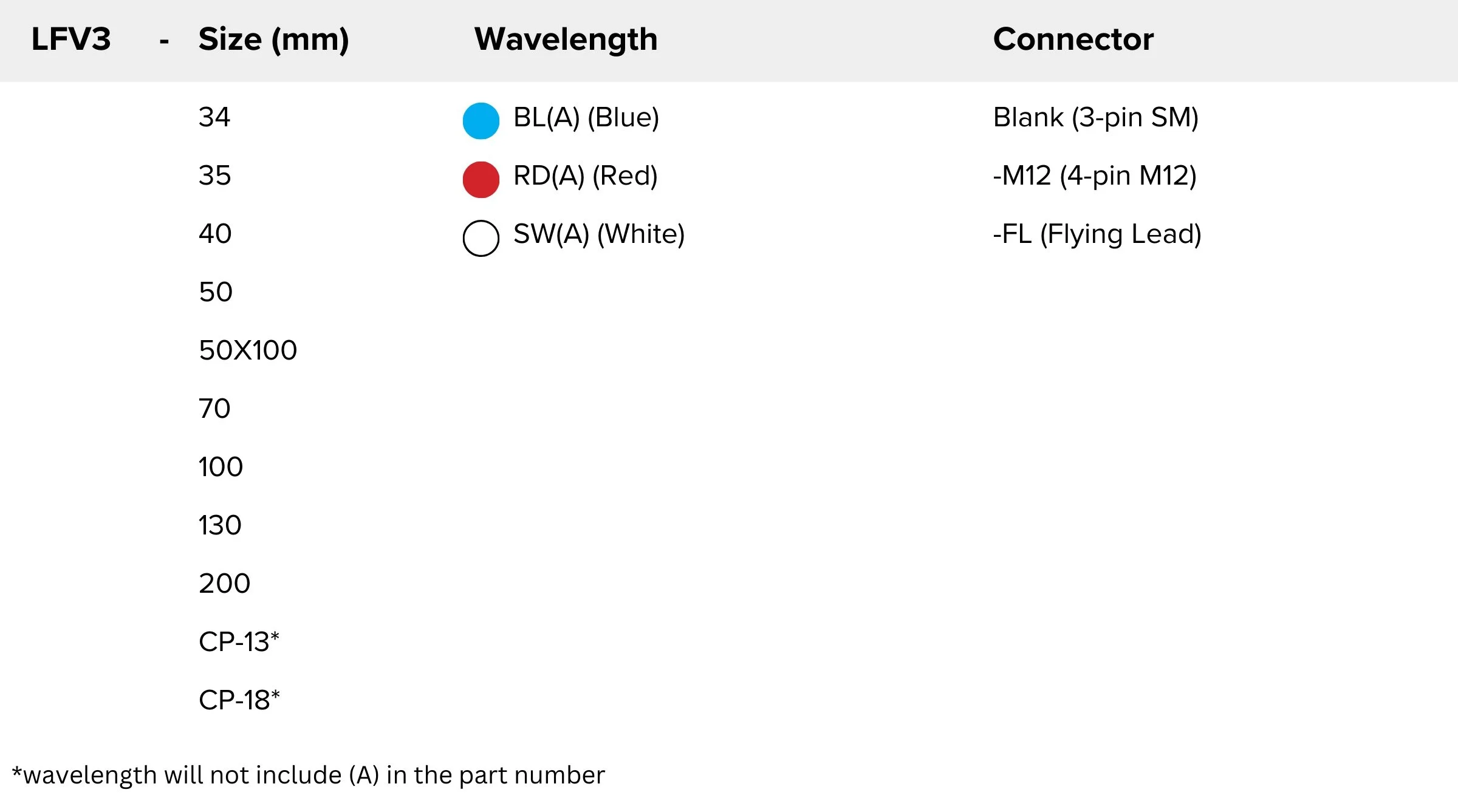

Part No. Key

Imaging Examples
