Here because you saw us at
and have lighting questions?
Industrial automation companies need experts who understand the vision portion of a machine and how to integrate it.
There is a misconception that vision inspections can be an afterthought after the machine is designed…
Only to find that improper/insufficient machine vision lighting has made the system unreliable or inaccurate.
CCS America is the vision expert you're missing in-house, with testing labs that have a comprehensive range of
Precision lighting
Flood lighting
Lighting control
Optics and cameras
To determine the best lighting solution to integrate into your machine vision system.
Below you will find a breakdown of everything we showcased at Automate, including all the demos, additional resources, and contact information.
We will also be hosting a webinar on June 15, 2023 (Thu) on
Common Pitfalls in Machine Vision Lighting.
Light Wall
*Custom order item
PRECISION VS FLOOD
LINE SCAN
LNSP2-300RD* with CU-LNSP2-300-GL
AREA SCAN
WAVELENGTH
IP RATING
EFFI-FLEX-15-465-KIT (IP65)
EFFI-FLEX-CPT-10-000-SD-P2 (IP67)
EFFI-FLEX-IP69K-15-000-SD-P2 (IP69K)
Table
LB Series Diffused Bar Lights
3 emitting surface widths x 26 emitting surface lengths = 78 size options
Wavelengths: Red, White, Blue, Infrared
High power type available with overdrive
Ideal for: bright field, backlighting, dome lighting, and wide-range uniform illumination

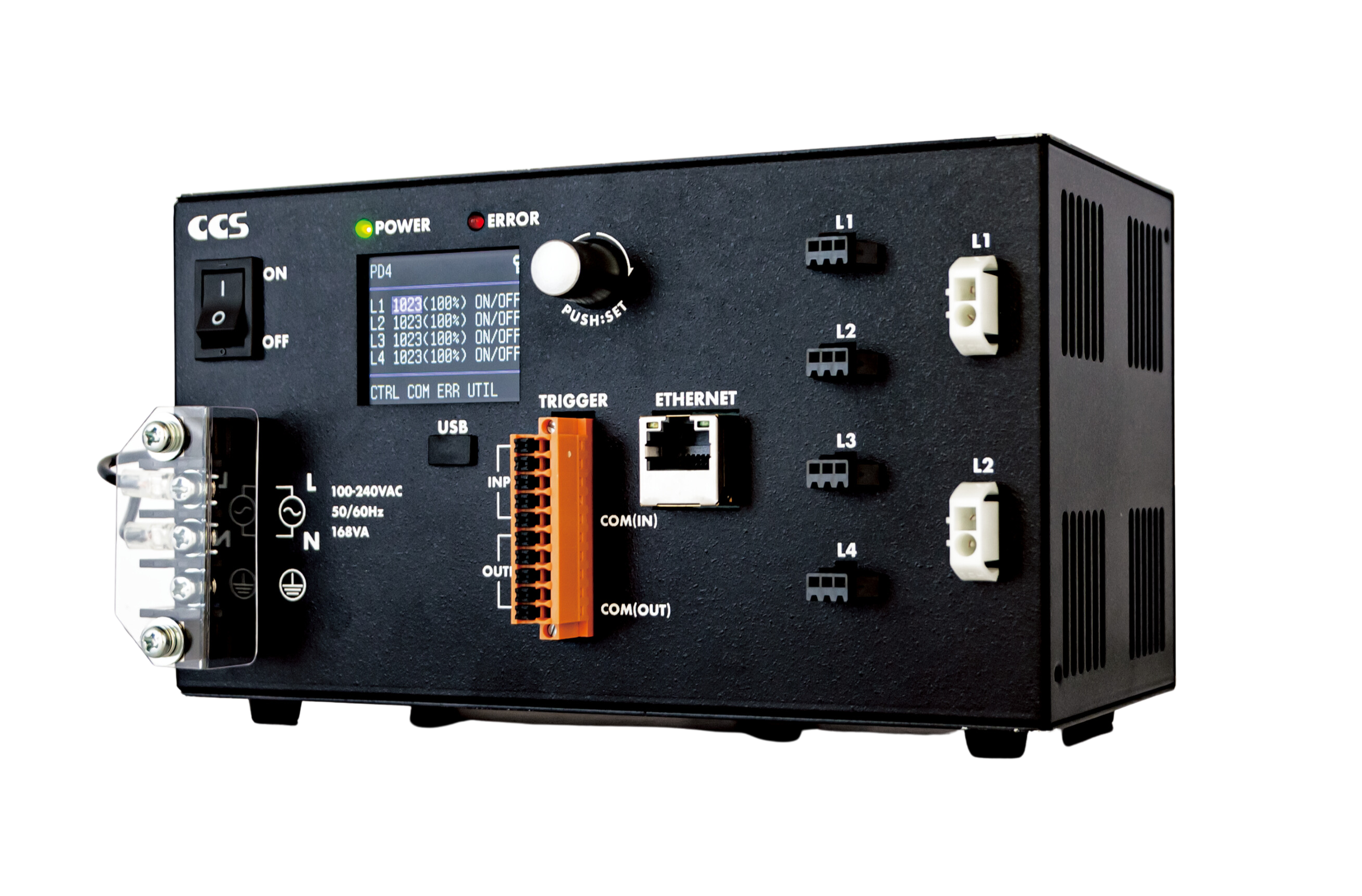

PD4 Series Control Units
2 channels / 4 channels
Total wattage: 60 W / 120 W
Parallel, Ethernet, PLCCOM, USB communication
Enhanced functionality: sequence control, trigger output, recipes
LFXV Series Flat Dome Lights
Dome illumination effect without camera hole shadow
Space-saving case design is thin, compact, and lightweight
10 sizes, 4 wavelengths (white, red, blue, infrared)
Now available in PF “Power Flash” Series
Table

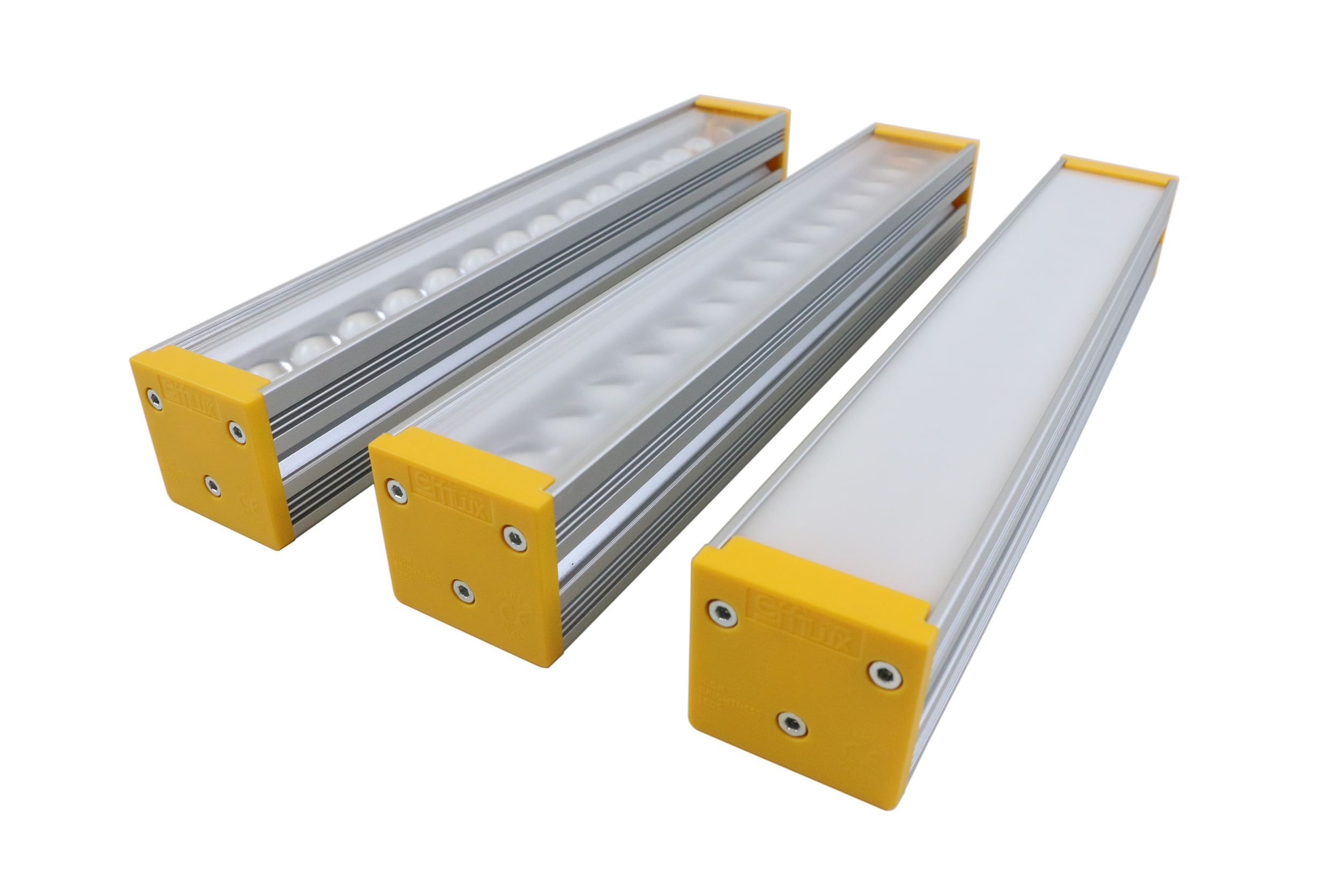

EFFI-FLEX2 New Generation of Flexible Bar Lights
Built-in multimode driver offers 3 electronic modes inside the same light (Overdrive, Adjustable strobe, and Continuous mode with AIC)
More powerful: 4.5x overdrive ratio
Same optical flexibility as original FLEX (adjustable lens position and diffusers, innovative optical accessories)
Same footprint: Easy to swap with original EFFI-FLEX
Available up to 3m long
EFFI-FLEX-LG Flexible & Ultra High-Power Logistics Bar Light
Ultra-high power thanks to MegaStrobe™ technology
Ultra-fast: pulse duration up to 400µs and frequency of 150Hz with a response time <1µs
Same modular lens and window flexibility as FLEX2
EFFI-RING Adjustable Beam Power Ring
Same optical flexibility as EFFI-FLEX (adjustable lens position and diffusers, innovative optical accessories)
Integrated driver with AutoStrobe function which automatically increases power by 700% in overdrive mode
Robust IP65 design
Hole camera of 58mm, compatible with most lenses.
SWIR Range or Short Wave InfraRed LED Lighting
The infrared spectrum allows it to reveal phenomena and elements invisible to human eye such as
Transmission of opaque materials (plastics, silicon, etc.)
Reveal elements like water, liquid, collagen, etc.
See through smoke, fog and dust, day and night.
Table
TR-MP120 Single Channel LED Controller with Triniti technology
MORE POWER – 50W per channel: Doubling our entry level power offering.
MORE SPEED – Over 50kHz pulse rate: 50-fold increase over the RT series.
MORE VOLTAGE – 72V lighting voltages now supported for limitless strobing.
PP480 LED Lighting Controller with Ethernet and RS232 Interfaces
Configured using a Web browser or commands
Incorporates patented SafeSense™ Technology
Integrates with Machine Vision Software
Output status indication
